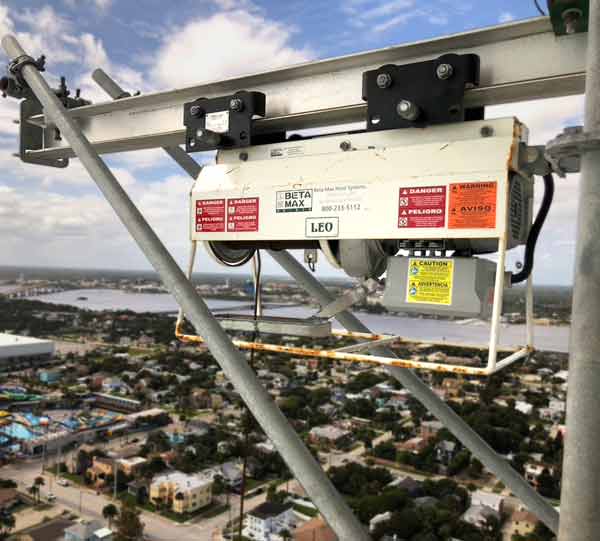

LEO

LiftS 2000 lb quickly and safely

Lift heavy loads at speeds of up to 80 feet per minute

Single Line Setup

  • Lifting Capacity: 1000 lb
  • Lifting Speed: 80 fpm
  • Lifting Height: 220 ft

Double Line Setup

  • Lifting Capacity: 2000 lb
  • Lifting Speed: 40 fpm
  • Lifting Height: 110 ft
  • Power: 1Φ 220V
  • Unit Weight: 165 lb
  • Product Number: 50-40
  • External Pendant Controller (Wireless Option available)
GET A QUOTE

Mounting Setup Options

Scaff Trac: Our most popular mounting system attaches in minutes, with no tools, to existing scaffolding. Unlimited system lengths are available using 7 ft. Scaff-Trac extensions.

  • Max. Load Lift: 1200 lb
  • Outward Cantilever: 3.5 ft

I Beam Trolley: Our most flexible and versatile mounting system. The addition of a rolling I-Beam Trolley Top allows many BETA MAX Hoists to adapt to existing I-Beams.

  • Max. Load Lift: 2000 lb
  • Adjustable Flange Width: 3"-8.25"

I Beam Fixed: Our Fixed I-Beam Top firmly holds the hoist stationary on the I-Beam.

  • Max. Load Lift: 2000 lb
  • Adjustable Flange Width: 2.5"-5"

Trestle Monorail: This mount is easily installed for between-the-floor or rooftop lifting, but must be properly counterbalanced.

  • Max. Load Lift: 2000 lb
  • Outward Cantilever: 3.5 ft

Accessories

Block Fork

Block Fork

  • 70-23
  • Lift 8″ x 8″ x 16″ block.
  • Lifting Capacity: 800 lb​
  • Dimensions: 24.5″ x 24.5″ x 34.5″​
Scaffold Frame Fork

Scaffold Frame Fork

  • 70-22
  • Holds up to 10 scaffold frames.
  • Lifting Capacity: 600 lb
  • Dimensions: 36.25″ x 15″ x 25″
Basket

Equipment Basket

  • 70-45, 70-49
  • Equipment basket in two sizes: Standard Duty or Heavy Duty
  • Lifting Capacity: 400 or 800 lb
  • Dimensions: 30″x20″x12″ or 36″x36″x18″
  • Must be used with a spreader bar.
Dumpster Buckets

Dumpster Buckets

  • 70-58, 70-59, 70-60
  • Designed for easy unloading.
  • Easy to empty bucket swivels 360º and comes in three sizes.
  • Lifting Volumes: 21, 39, 52 gal.
  • Lifting Capacity: 1,000 lb

Spreader Bar

  • 70-26, 70-27
  • High capacity and low clearance - both designed to provide maximum room for your payload.
  • Use with slings to carry piping or cross-braces. Works with Beta Max mud tub and equipment basket.
  • Lifting Capacity: 600 or 1000 lb

Mud Tub

  • 70-41, 70-42
  • Move mud where you need it, when you need it.
  • Lifting Capacity: 950 lb or 1,375 lb
  • Lifting Volume: 6 cu. feet or 9 cu. feet.
  • Dimensions: 42″ x 27″ x 18″ or 42″ x 27″ x 28″

Wheelbarrow Sling

  • 70-28
  • Put your standard wheelbarrow to maximum use.
  • Lifting Capacity: 800 lb
70-2 Render - No Swivel

Double Rope Kit

  • 70-2, 70-9
  • Double your lifting capacity in less than 90 seconds.
  • A Rugged Pulley and hook assembly for units with double rope capabilities.
  • Operation Distance: Up to 1,000 feet with line of sight from remote to hoist.

I-Beam Suspension Brackets

  • 60-40
  • Use an I-Beam setup with your scaffolding.
  • Sold Individually
  • Typically purchased in pairs for mounting an i-beam to existing scaffolding.

Counterweight Clamp Set

  • 60-1, 60-29
  • Properly counterbalance your scaffold or monorail setup.
  • Typically purchased in pairs for equal counter-balancing. Sold individually, staging weights not included.

Pendant Controller

  • 50-9-1
  • Standard 6 foot pendant included with all non VFD hoists.
  • Control Type: Wired
  • Options: Single Discrete Speed (Up & Down Buttons)

Pendant Extensions

  • 70-10, 70-12
  • Extend your wired pendant control by 50' and 100'

Booster Transformers

  • 30-113, 30-114
  • Power: 110V or 220V
  • Connection: In-line

Power Cord Extensions

  • 70-5, 70-19, 70-13
  • Ensure proper power supply with 100 foot power cord extensions specific to your hoist.
  • Power: 110V or 220V
  • Length: 100 ft
  • Models: Specific to hoist voltage and amperage.

Wireless Dual Remote Kit

  • 70-430-1, 70-430-2, 70‑430‑3
  • Two wireless remotes provide control where you need it.
  • Remotes Included: 2
  • Operation Distance: Up to 1,000 feet with line of sight from remote to hoist.
